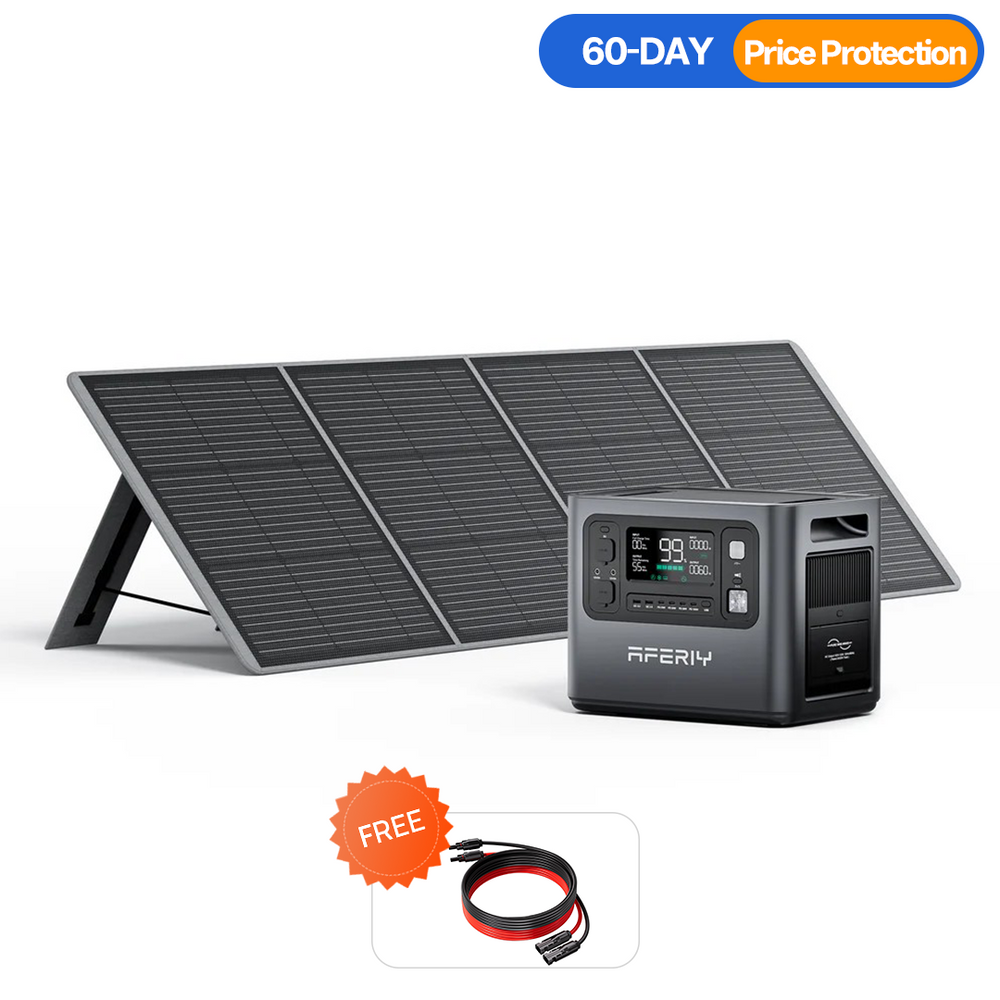

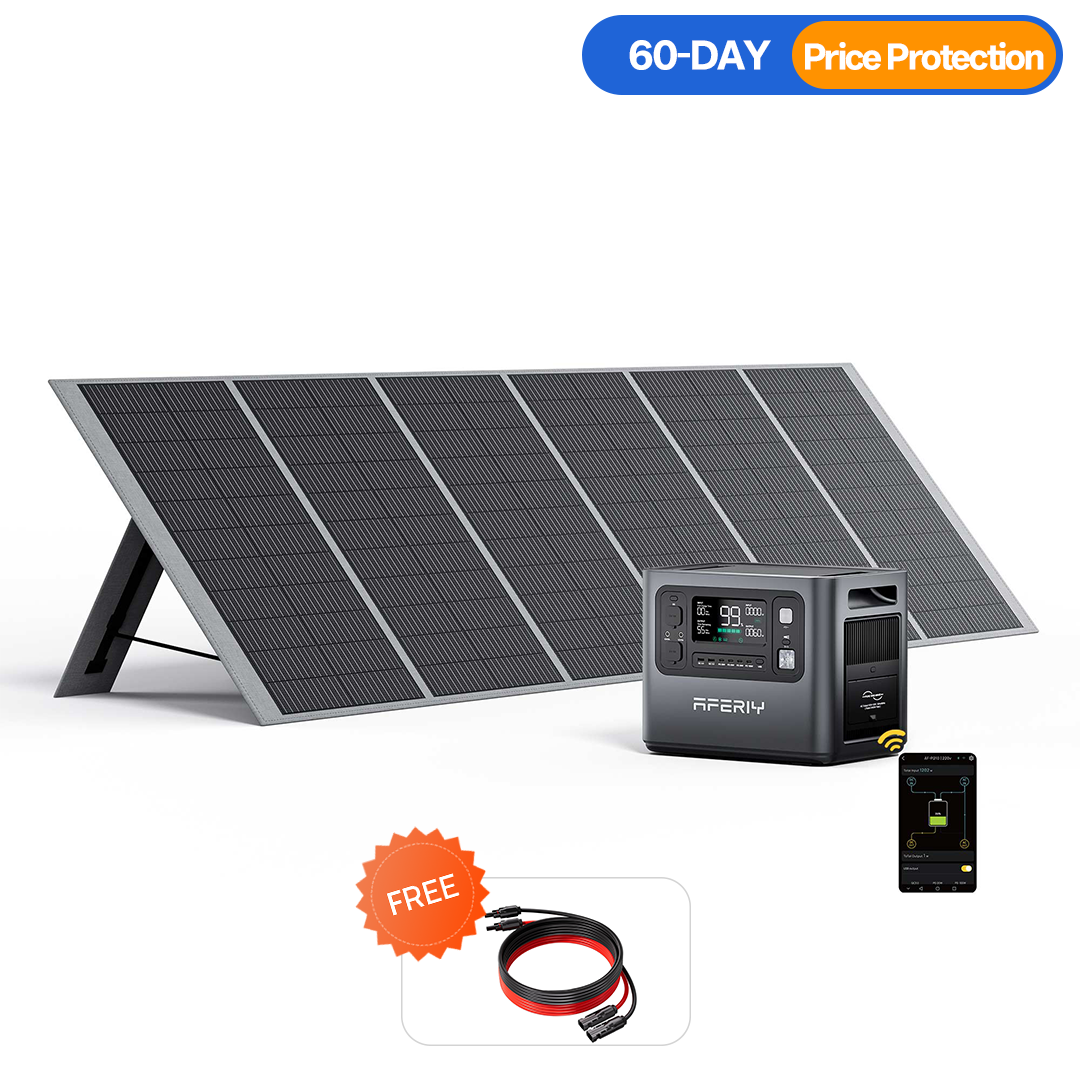

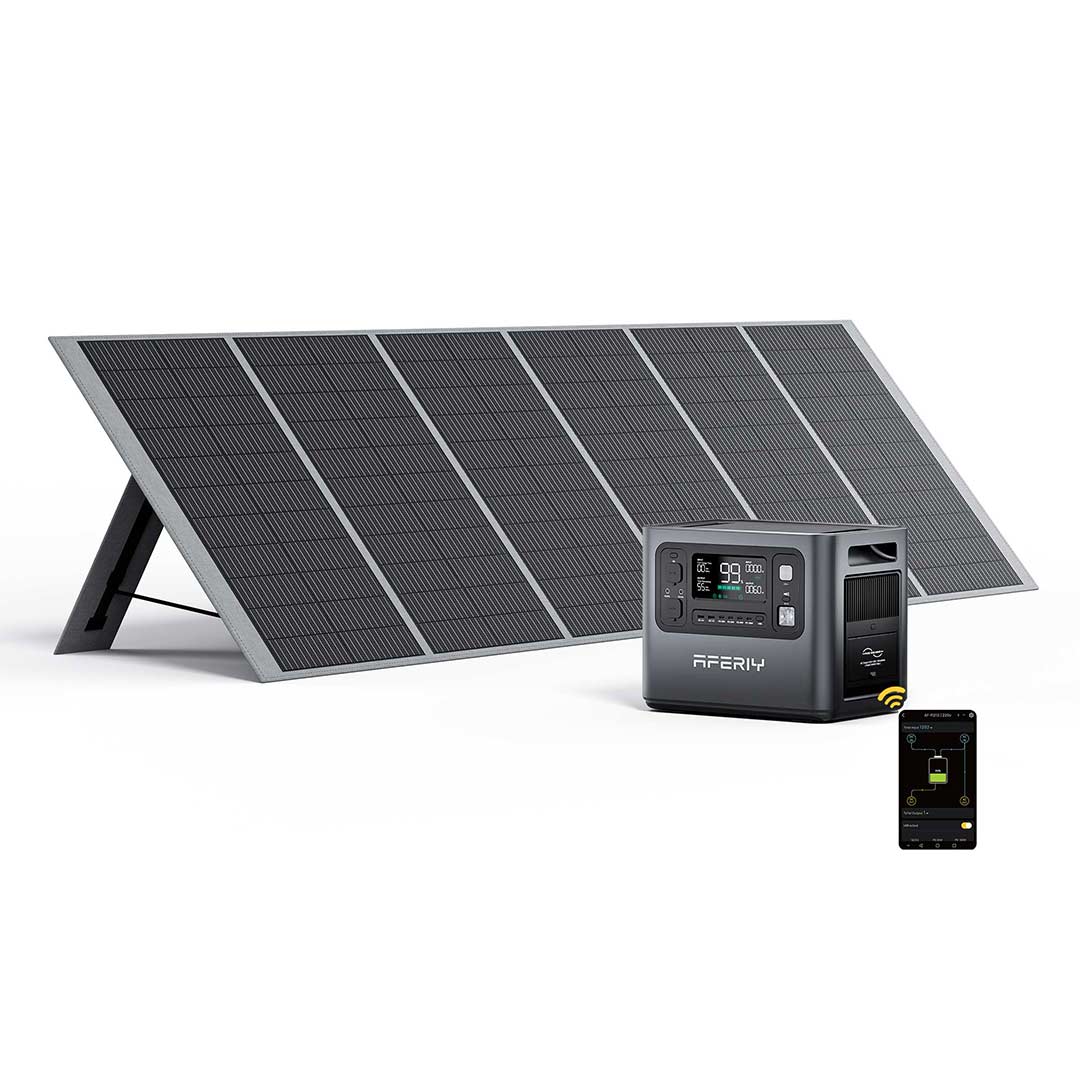

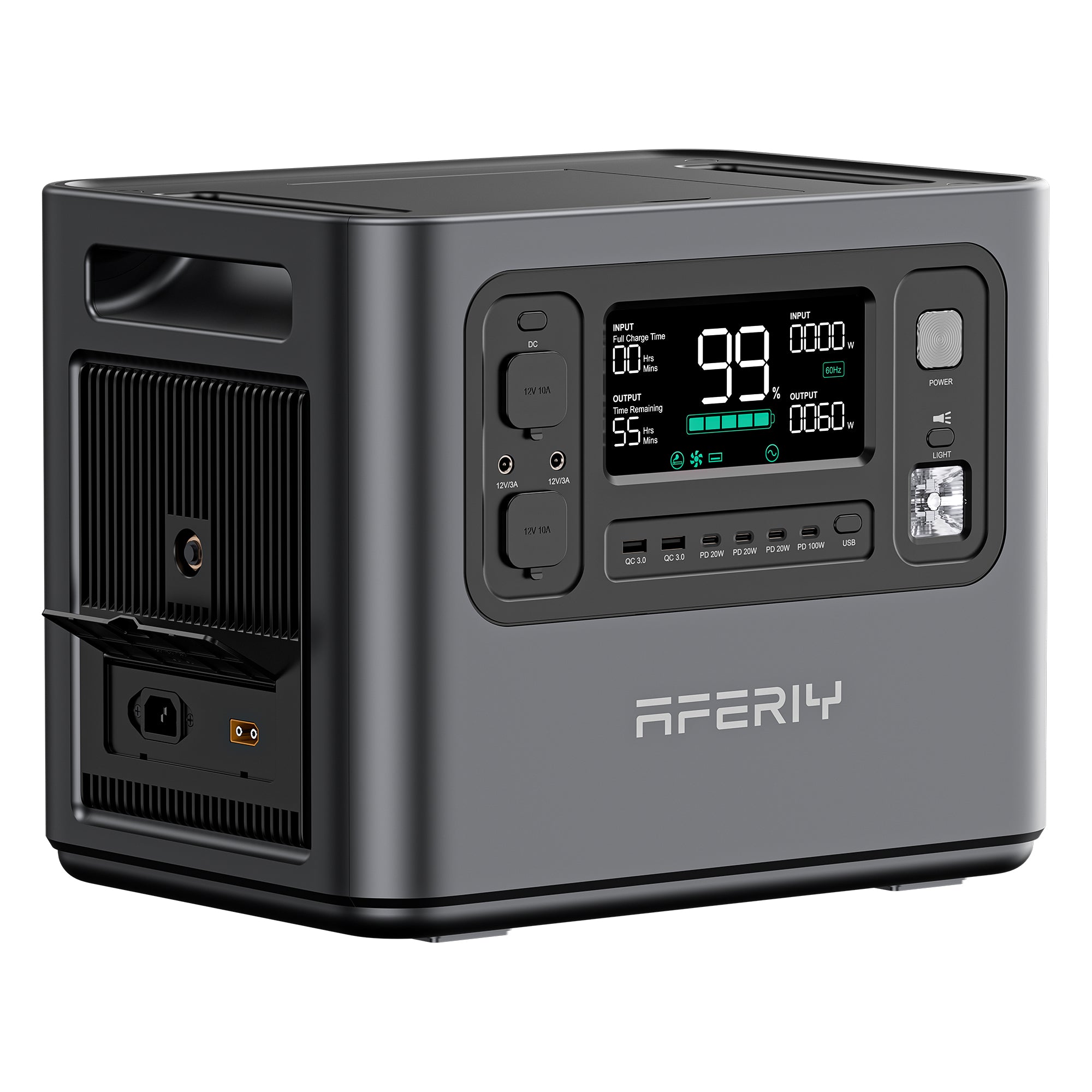

AFERIY Haven2400 P210 2400W Zonnegenerator

You can download it by searching 'BrightEMS' in the Apple Store and Google Play Store, and you can control the power station through the APP.

The rated capacity of the P210 power station is 2048Wh. However, in practice, the output capacity is generally lower than the rated capacity for the following reasons:

Battery life protection: The battery never fully discharges (even when the power station indicates 0%, about 5% of the energy remains in the battery pack) to extend the station's lifespan.

Self-consumption: When the power station's AC switch is activated, the device consumes about 20-25W per hour. Therefore, the longer the device is used, the more the station's self-consumption increases.

Conversion losses: The power station's battery pack converts DC to AC via an inverter, with a conversion efficiency of around 90%. Additionally, there are energy losses across various circuits. These factors result in an actual output capacity that is lower than the rated capacity.

In the upgrade of our self-developed technology, we have improved some functions based on buyer suggestions for the 2001A:

The AF-P210 has a larger capacity of 2048Wh and higher power of 2400W.

The AF-P210 improves battery quality and extends its lifespan.

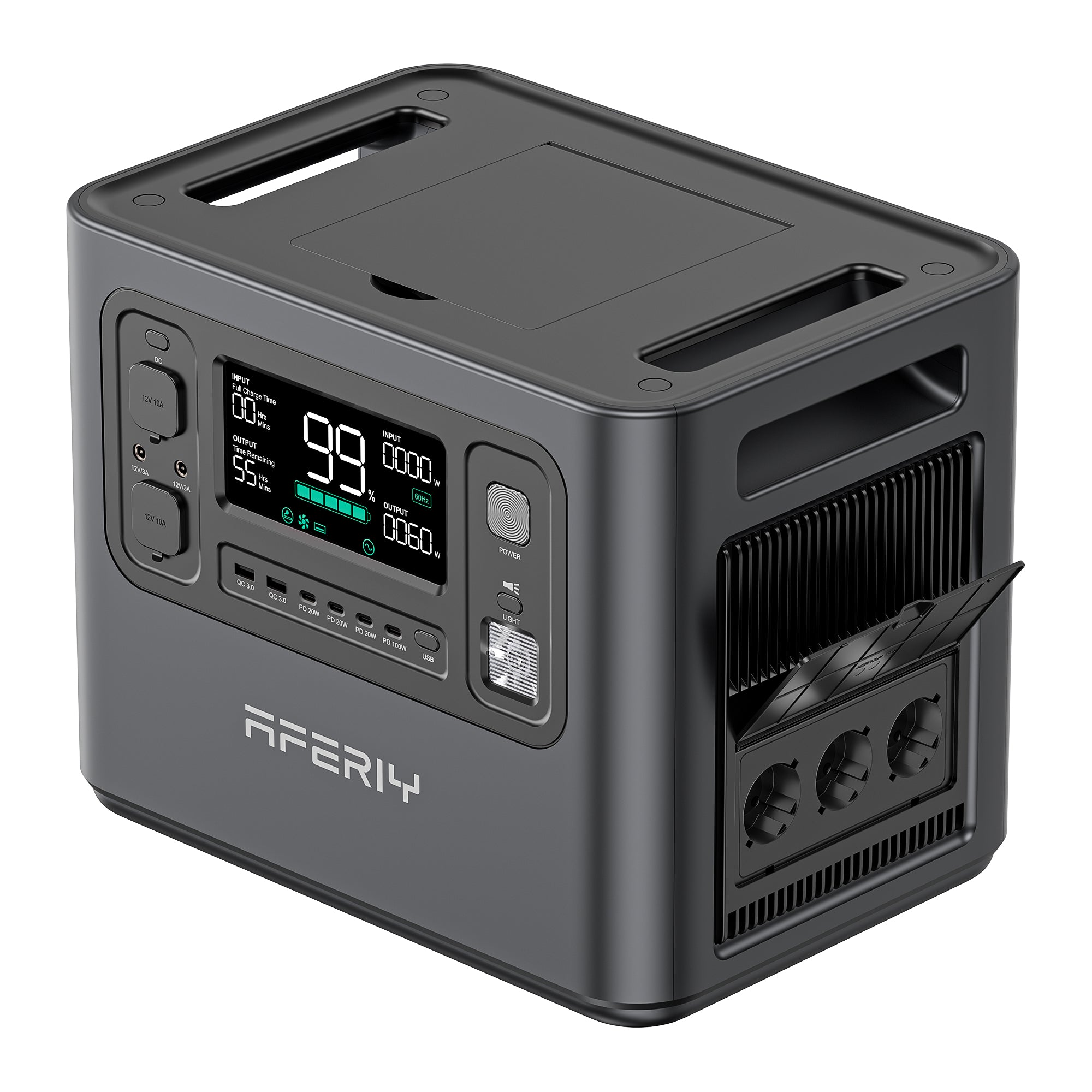

A storage box is added on top of the AF-P210.

The AF-P210 has an enhanced appearance.

AF-P210 extends the warranty to 7 years (2001A - 5 years).

The solar/car charging input port of the P210 is XT90 (the input port of the 2001A is Anderson).

Yes, please note that you need to activate the corresponding output switch on the portable power station.

When the portable power station is connected between an AC wall socket and household appliances, and both the power switch and AC switch of the portable power station are ON, the product enters UPS mode (Uninterruptible Power Supply).

The cooling fan does not run all the time; it only starts automatically when the internal temperature of the power station exceeds 60 degrees.

It is quiet during normal operation, and when the cooling fan is activated, the sound is below 60 dB.

Without the AC switch turned on, if the portable power bank is on without any further operation, the standby power consumption will be automatically set to no output if it is below 8W, and the machine will automatically shut down after 5 minutes.

With the AC switch turned on, if the portable power bank is on without any further operation, the standby power consumption will be automatically set to no output if it is between 15W and 25W, and the machine will automatically shut down after 8 hours.

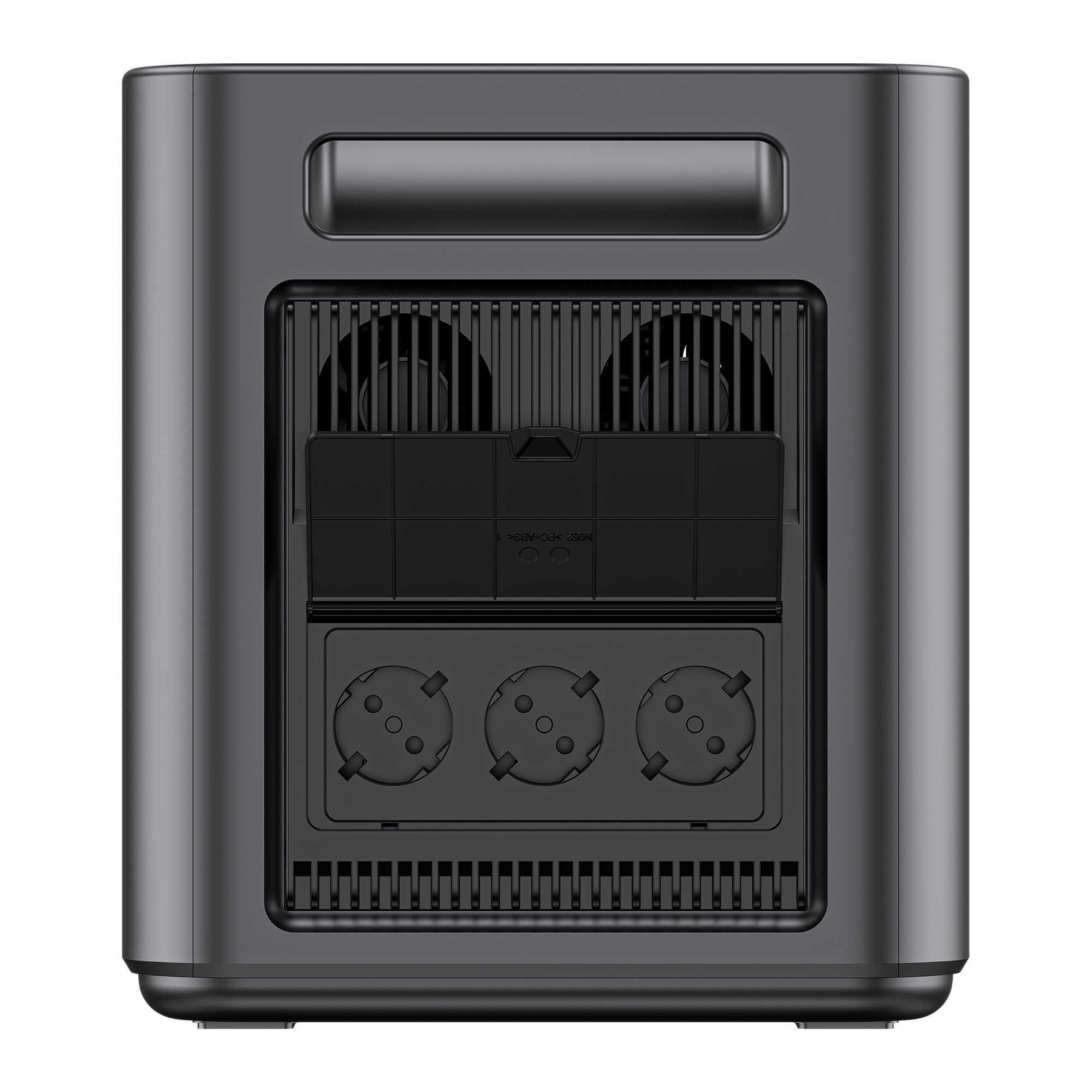

The US/JP plug standard has 6 AC outlets (100-120V), while the UK/Europe plug standard has 3 AC outlets (220-240V).

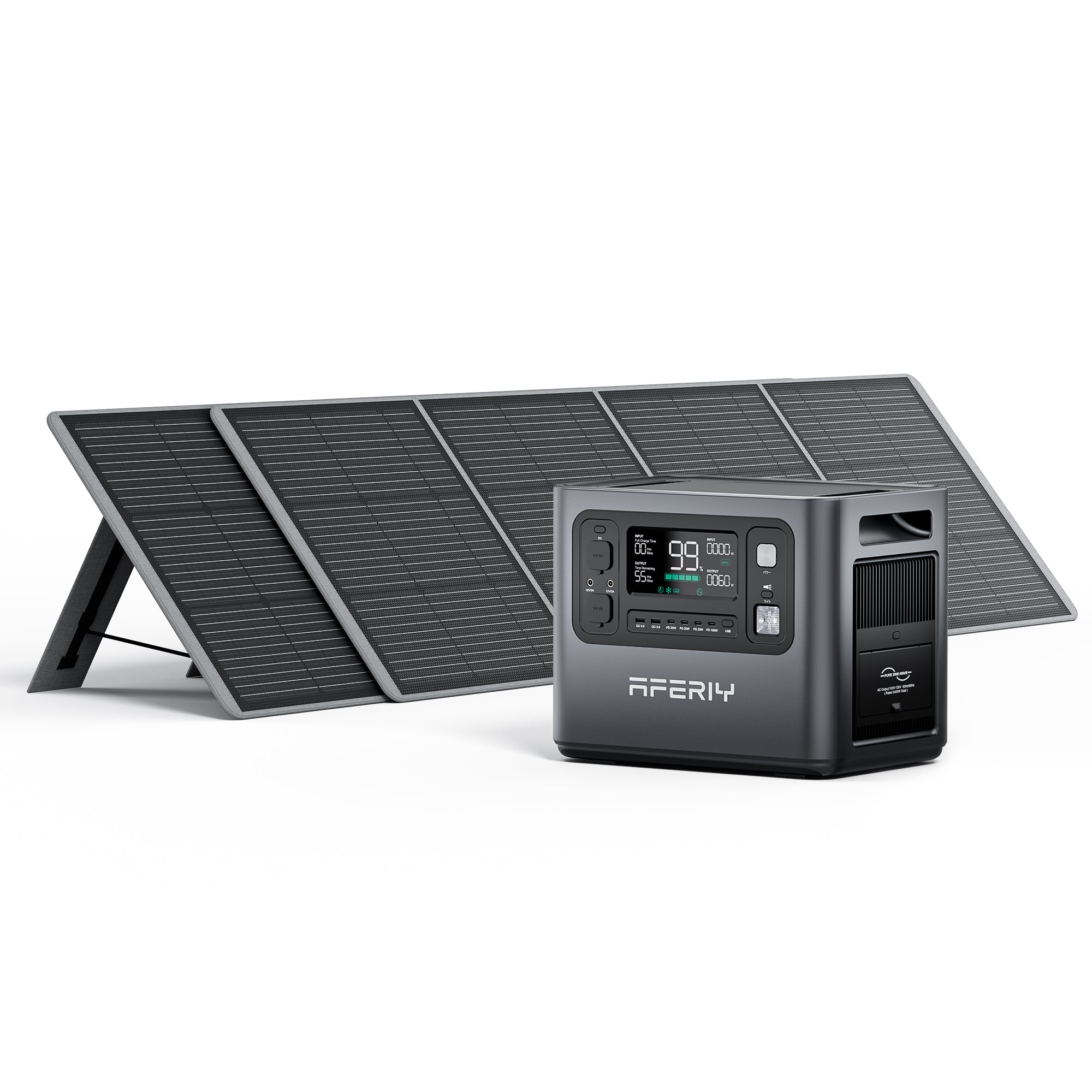

Yes, the AFERIY AF-P210 is compatible with most other brands of solar panels on the market. It is also compatible with AFERIY solar panels: AF-S200, AF-S100, AF-S400. Please note that the AFERIY AF-P210 supports a maximum input voltage of 48V, a maximum input power of 500W, and a maximum input current of 20A.

Yes, the AFERIY portable power station can be permanently connected to a solar panel. However, at sunrise or sunset, the solar panel may emit a ticking sound (due to the internal relay installed in the AFERIY portable power station, which acts as a protection circuit). This noise is normal and will not damage the power station or the solar panel. Additionally, please note that the portable power bank will experience slight power consumption when connected to the solar panel without any power input. Therefore, it is recommended to connect the solar panel only during the day and disconnect it when there is no charging effect at night.

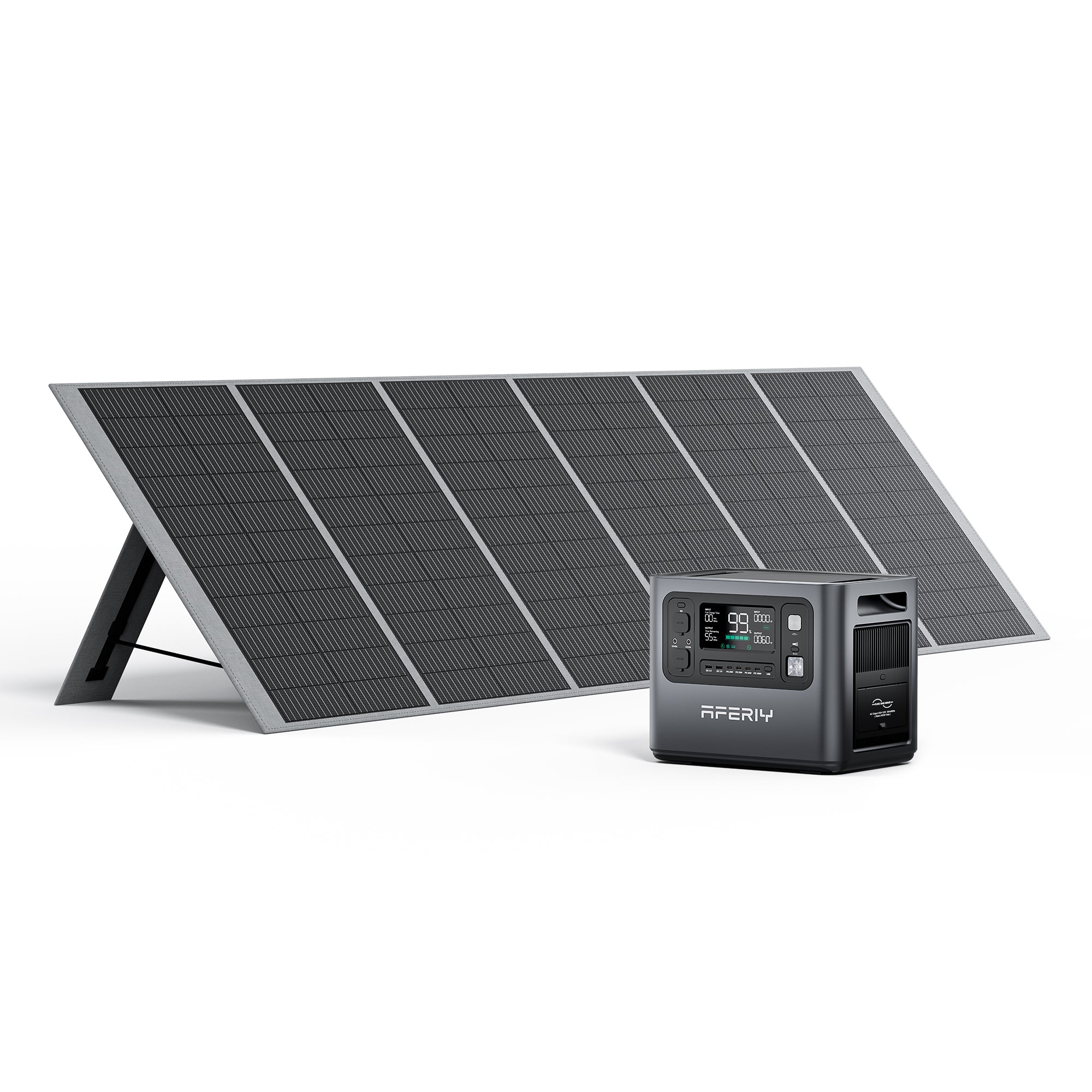

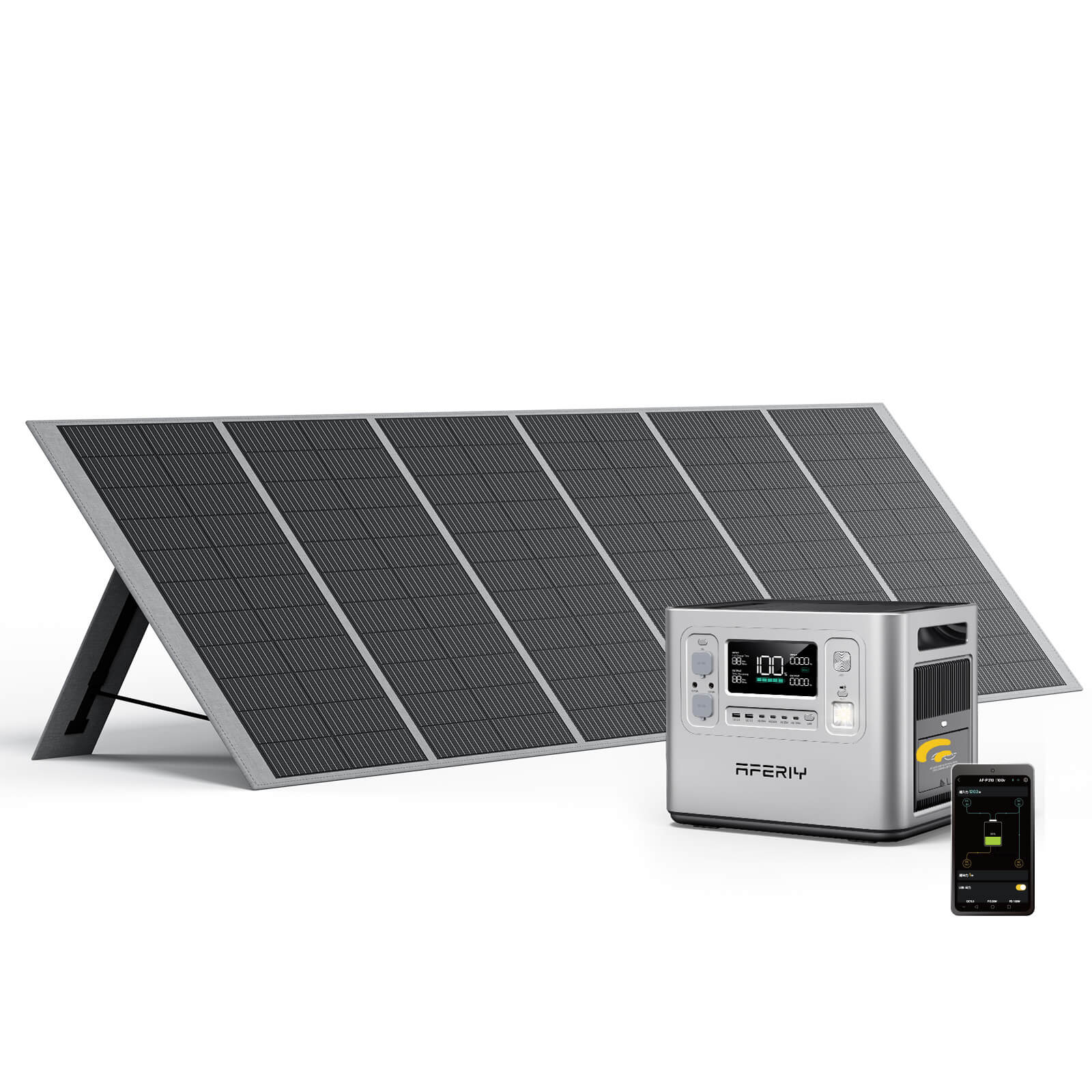

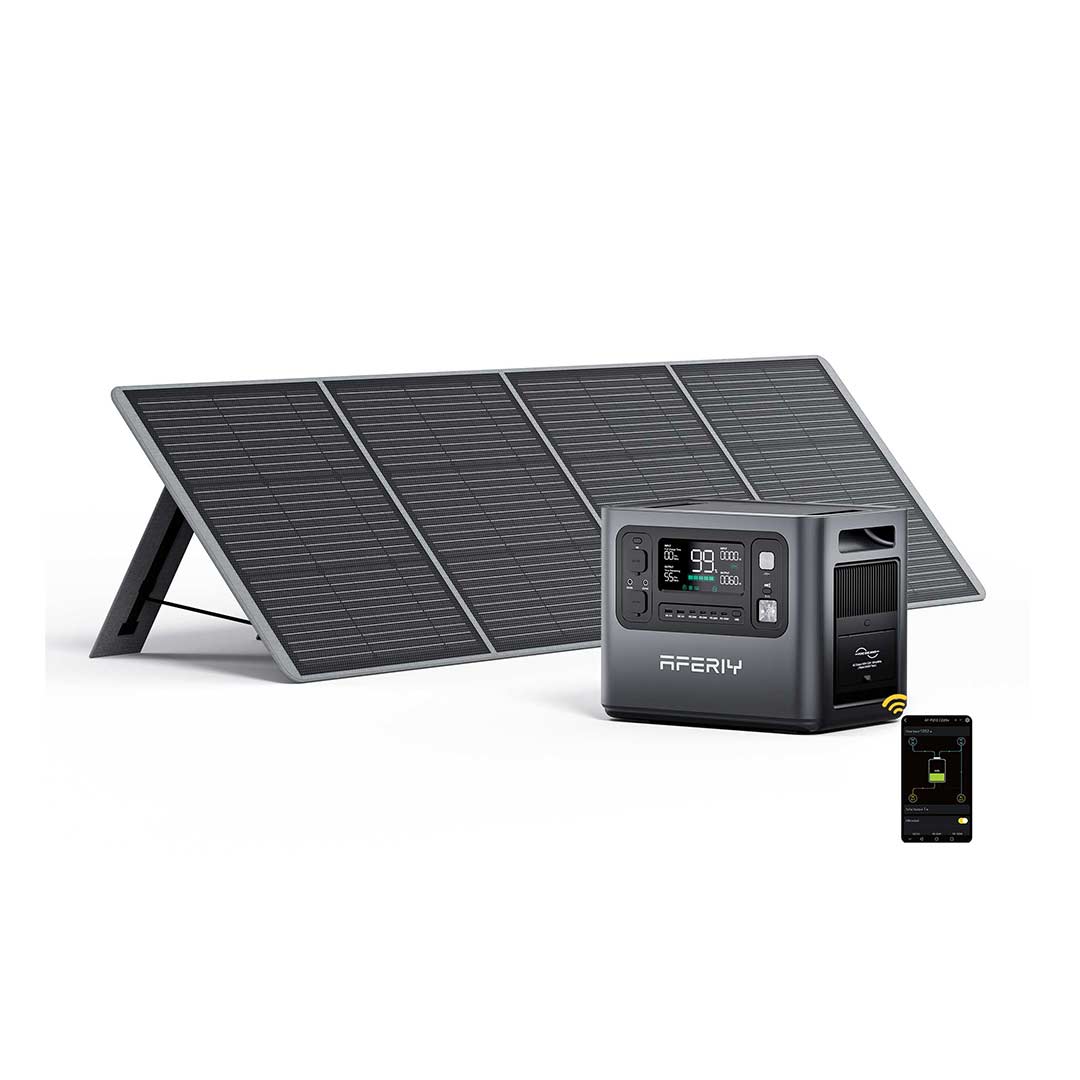

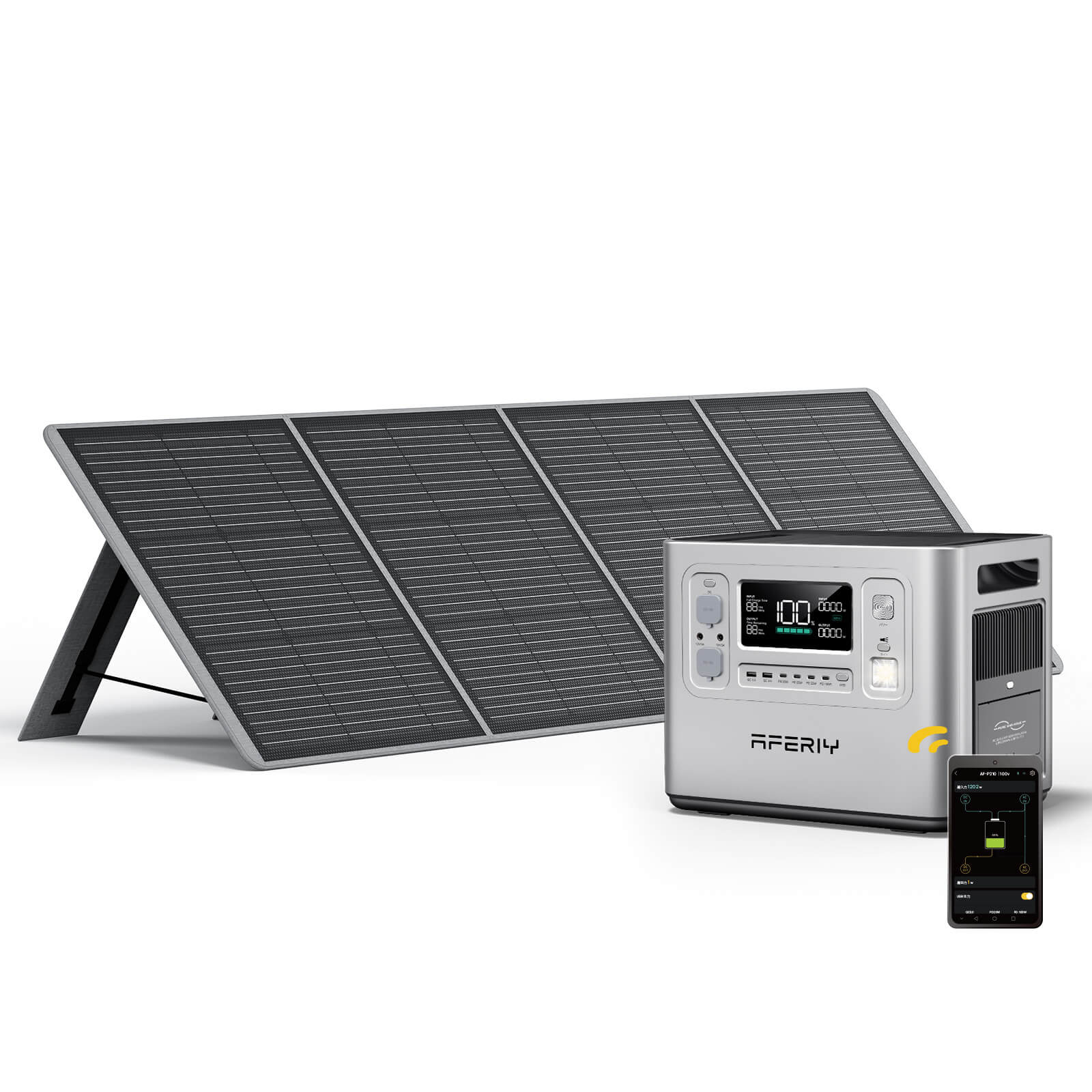

It depends on the combined power, voltage, and current of the solar panels you choose. You can connect the solar panels in parallel or series. Please note that the AFERIY AF-P210 supports a maximum input voltage of 48V, a maximum input power of 500W, and a maximum input current of 20A. If you connect AFERIY solar panels, you can either connect one AF-S400A1 (400W * 1) or connect two AF-S200A1 solar panels (200W * 2) simultaneously for charging.

Yes, a single ACC car charging cable (XT90 connector) is required. Please note that the car charging cable is capable of carrying a current higher than 10A.

No. If the internal battery malfunctions, please contact AFERIY customer service.

Currently, the P210 does not support capacity expansion. If you need a larger battery capacity, we recommend upgrading to the higher-capacity P310 or the P310 Expansion version.

If the battery will remain unused for more than 3 months, keep it at 60-80% of its nominal capacity (it is recommended to check and charge it every 3 months). Store it in a dry, cool place, away from corrosive substances, fire, and heat sources.

The standard AC output voltage varies by country. Please check the voltage requirement of your device before use. If you purchased the device before December 2023, quickly press the AC button 10 times in succession to switch the output voltage between 220V and 240V. If you purchased it after December 2023, there's no need to manually switch the voltage, as the device will automatically adapt to an AC output voltage of 220-240V.

If you purchased the device before December 2023, hold down the AC button for 3 seconds to switch between 50Hz and 60Hz. If purchased after this date, there's no need to manually switch the frequency, as the device will automatically adapt to the input/output frequency.

If you purchased the device before December 2023, the AC input power cannot be adjusted. If you purchased it after this date, press and hold the AC button for 10 seconds to enter the power switch mode. Input power can be set to 5 levels: 300W/500W/700W/900W/1100W.

Many motors or compressors generate a momentary surge current when they start, which is much higher than their rated operating power. This startup current can be several times the rated power, typically ranging from 2 to 7 times higher. This demand may exceed the power station's supply capacity, preventing the device from starting. Examples include water pumps, air conditioner compressors, and refrigerator compressors.
