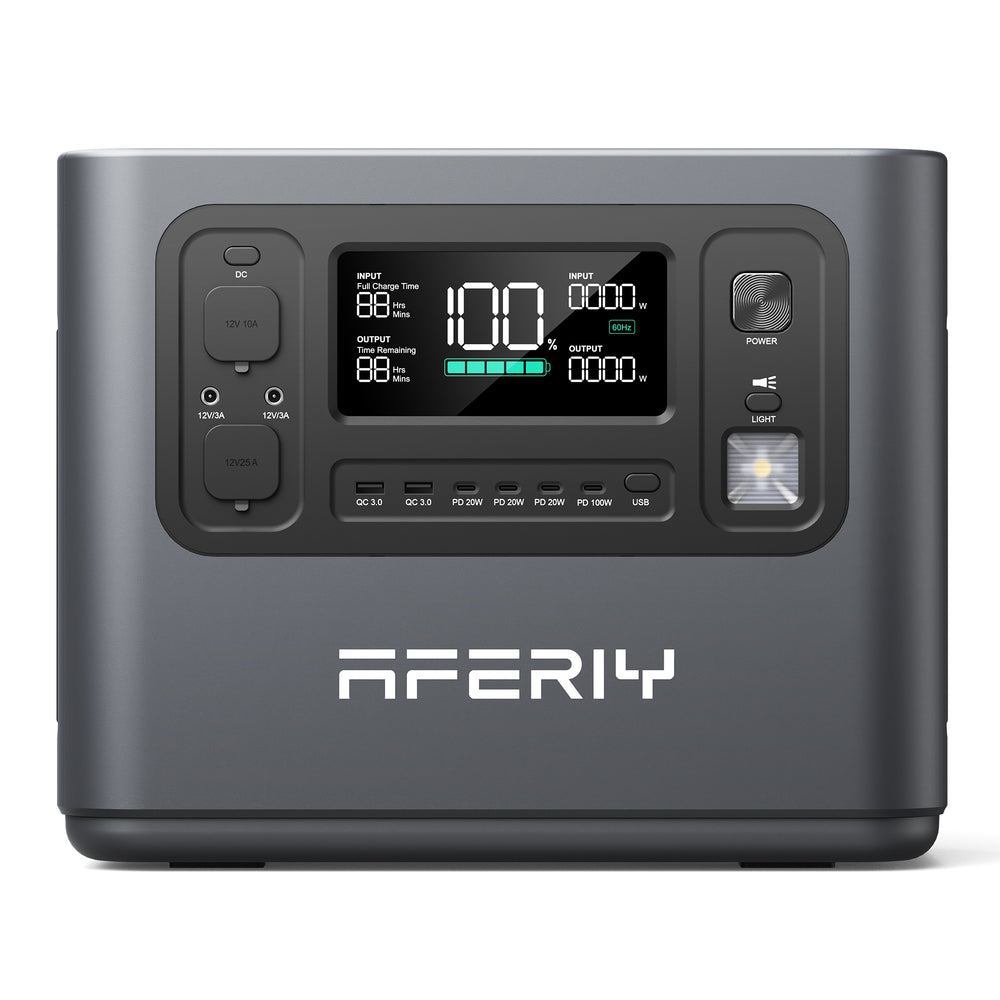

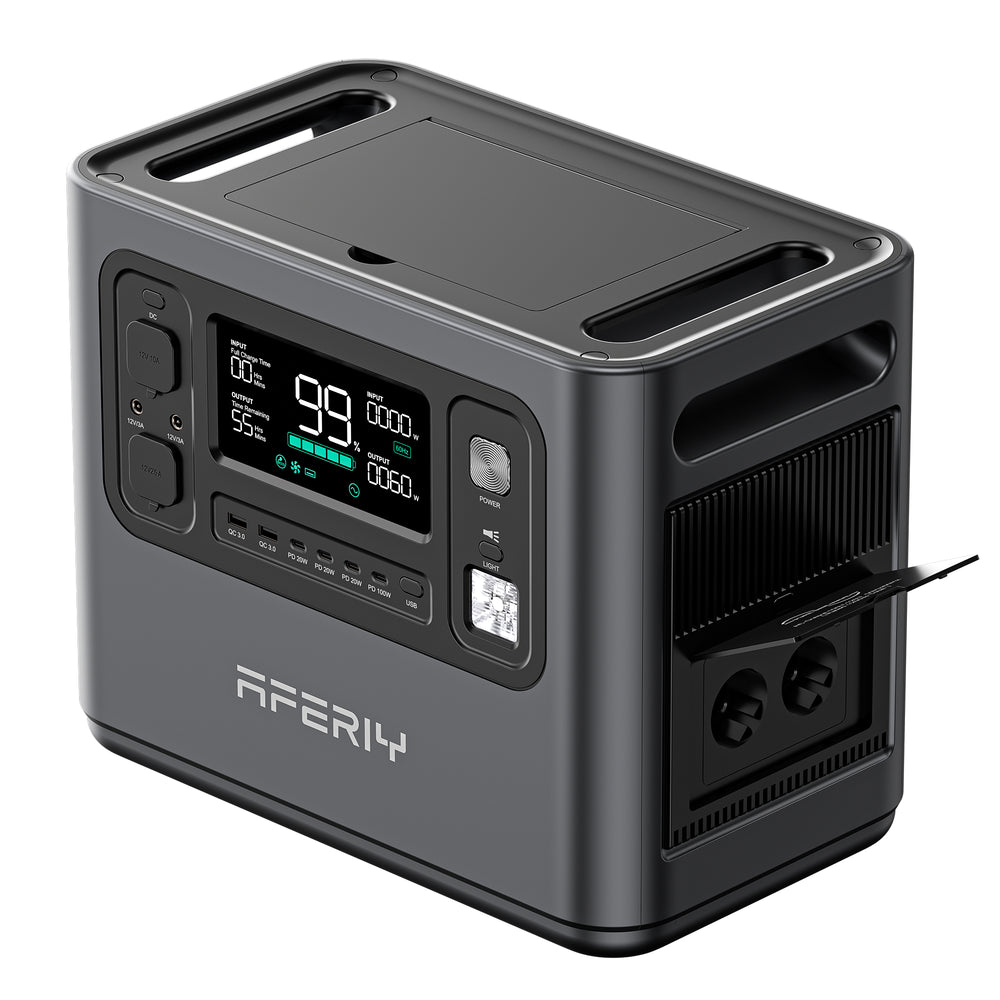

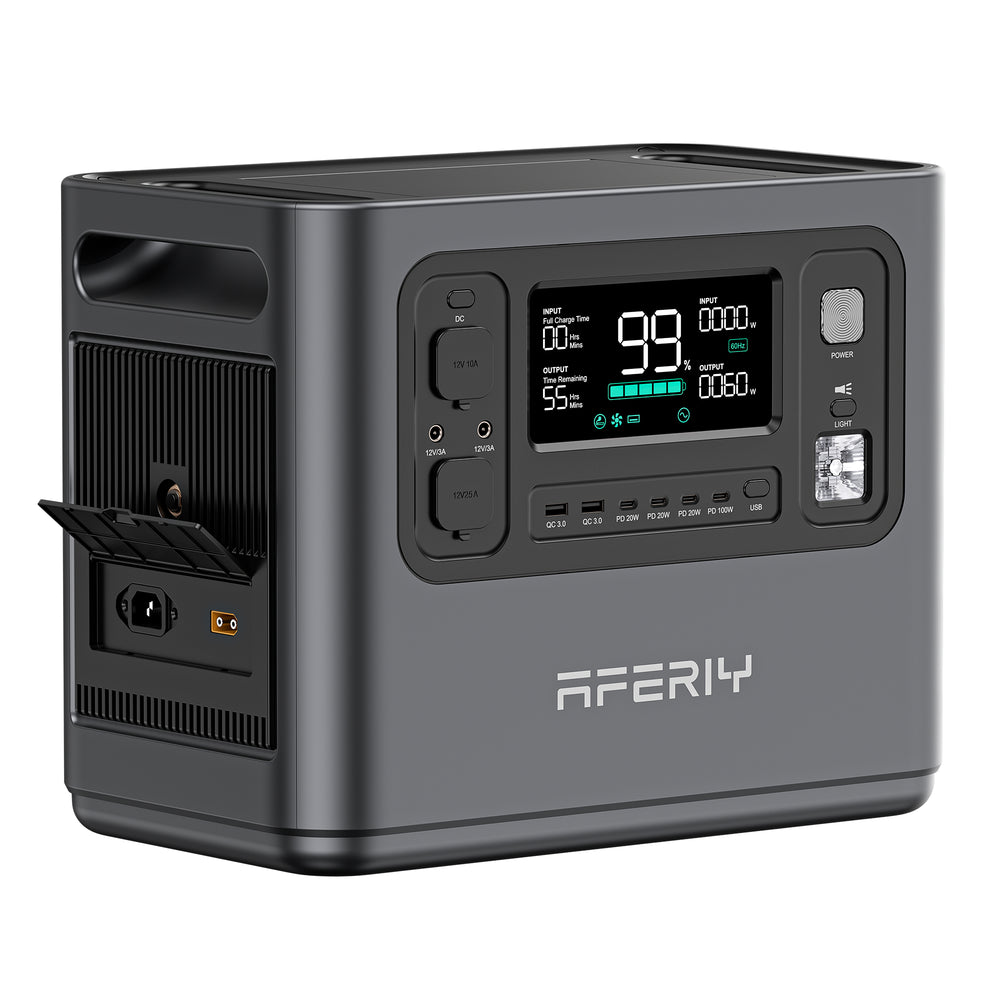

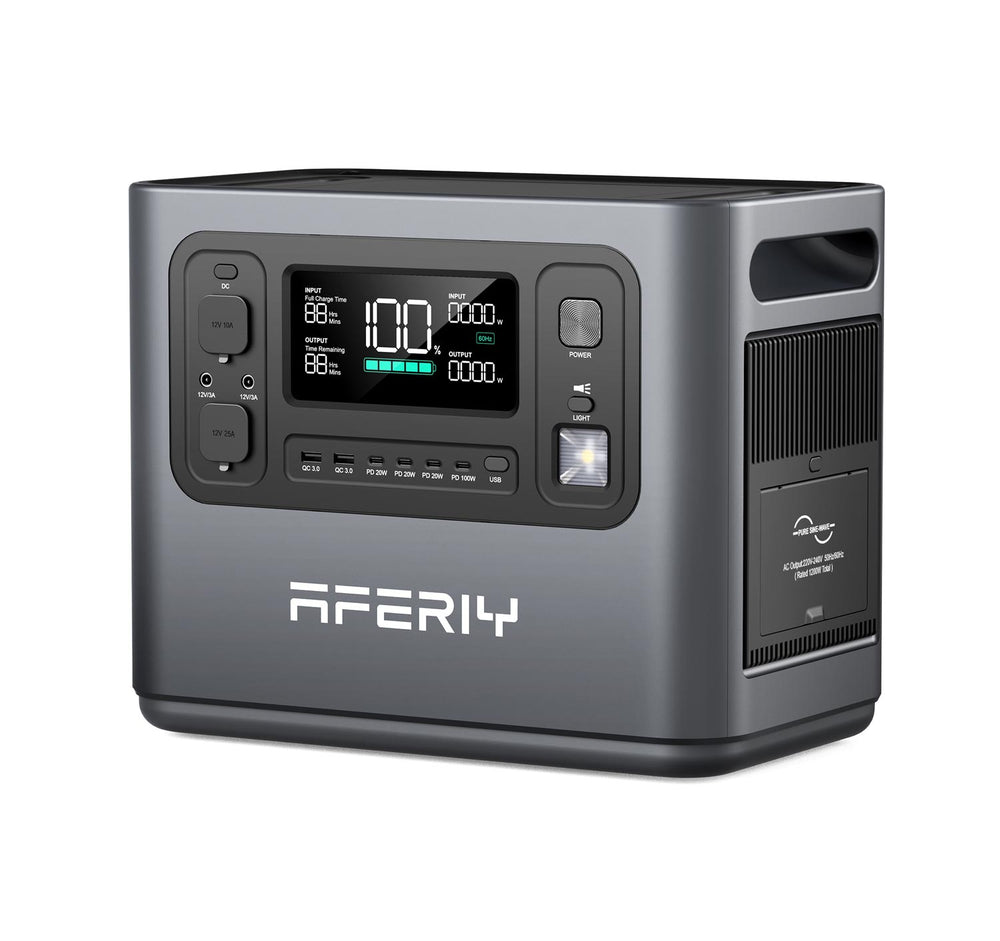

AFERIY P110-D Portable Power Station 1200W 960Wh

Regarding the capacity of the power station: The rated capacity of the P110 is 1248Wh, while the P110-D is 960Wh. In practice, the actual output capacity is generally lower than the rated capacity for the following reasons:

• Battery Life Protection: The battery is never fully discharged (even when the power station shows 0%, about 5% of the energy remains in the battery pack) to extend the life of the station.
• Self-Consumption: When the AC switch on the power station is turned on, the device consumes around 20-25W per hour. Therefore, the longer the device is used, the higher the self-consumption of the station.
• Conversion Losses: The power station's battery pack converts DC to AC via an inverter, with a conversion efficiency of around 90%. Additionally, there are energy losses through various circuits.

These factors result in the actual output capacity being lower than the rated capacity.

In upgrading our self-developed technology, we have enhanced certain features based on buyer feedback for the 1201A:

• The AF-P110 has improved battery quality, extended battery life, and increased overall durability.

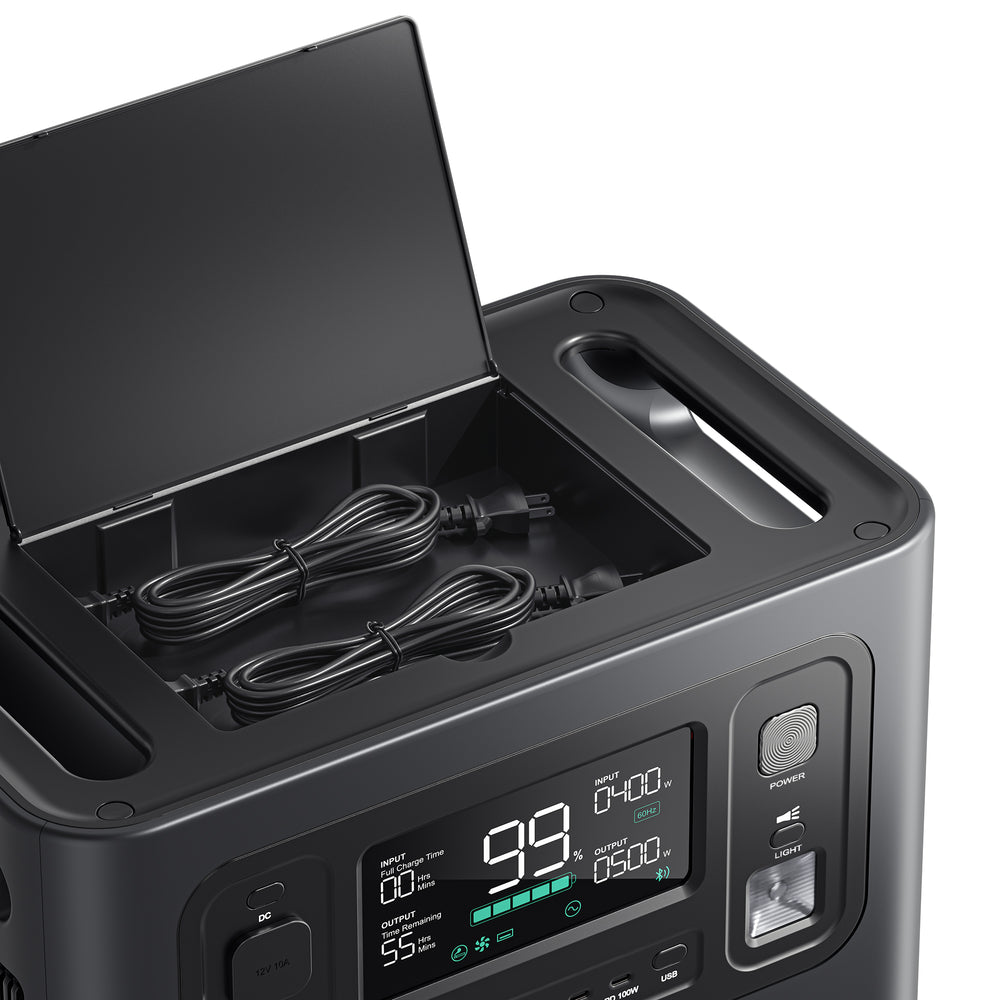

• A storage box is added on top of the AF-P210.
• The AF-P110 features an upgraded appearance.
• The AF-P110 extends the warranty to 7 years (compared to 5 years for the 1201A).
• The solar/car charging input port of the AF-P110 is XT90 (compared to Anderson on the 1201A).

Yes, but please ensure you turn on the corresponding output switch on the portable power station.

When the portable power station is connected between a wall outlet and household appliances, and both the power and AC switch of the portable power station are turned on, the product will enter UPS mode (Uninterruptible Power Supply).

The cooling fan does not run continuously; it only starts when the internal temperature of the power station exceeds 60°C. The fan will automatically turn on and start operating.

The fan is quiet during normal operation, and when the cooling fan is active, the noise level is less than 60 dB.

• Without turning on the AC switch, if the portable power bank is powered on with no other operation, the standby power consumption will automatically be set to no output if it is below 8W, and the device will automatically shut down after 5 minutes.
• With the AC switch on, if the portable power bank is powered on with no other operation, the standby power consumption will automatically be set to no output if it is between 15W and 25W, and the device will automatically shut down after 8 hours.

The voltage and frequency settings are typically not user-adjustable. Please refer to the product manual for specific details.

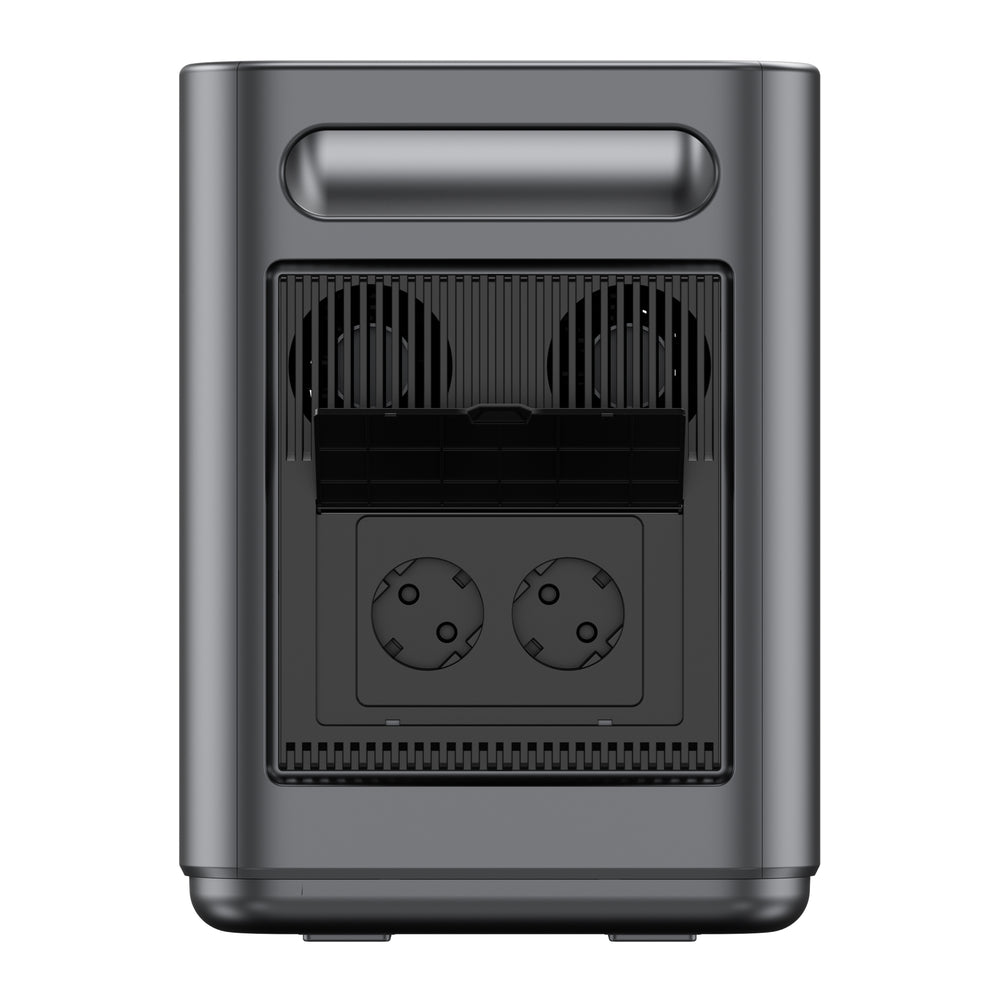

The US/JP plug standard has 4 AC outlets (100-120V), while the UK/Europe plug standard has 2 AC outlets (220-240V).

Yes, the AFERIY AF-P110/AF-P110D is compatible with most other solar panel brands on the market. It is also compatible with AFERIY solar panels: AF-S200A1, AF-S100, AF-S400A1.

Yes, the AFERIY portable power station can be permanently connected to a solar panel. However, during sunrise or sunset, the solar panel may emit a ticking sound (due to an internal relay in the AFERIY power station serving as a protection circuit). This noise is normal and will not damage the power station or the solar panel. Additionally, please note that the portable power bank will experience slight energy consumption when connected to a solar panel with no power input.

Therefore, it is recommended to connect the solar panel only during the day and disconnect it when there is no charging effect at night.

This depends on the combined power, voltage, and current of the solar panels you choose. You can connect the solar panels in parallel or series. Please note that the AFERIY AF-P110/AF-P110D supports a maximum input voltage of 48V, a maximum input power of 500W, and a maximum input current of 20A. If you use AFERIY solar panels, you can connect either one AF-S200 (200W*1) or two AF-S200 panels (200W*2) simultaneously for charging.

Yes, you will need a single car charging cable (XT90 connector). Please note that the car charging cable should be capable of carrying a current higher than 10A.

No. If the internal battery is malfunctioning, please contact AFERIY customer service.

No.

If the battery needs to remain unused for an extended period (more than 3 months), it should be kept at 60-80% of its rated capacity (it is recommended to check and recharge every 3 months). Store it in a dry and cool place, avoid contact with corrosive substances, and keep it away from fire and heat sources.

Many motors or compressors draw an initial surge current significantly higher than their rated power when starting. This startup current requirement can be several times higher than the rated power, typically between 2 and 7 times more. This can exceed the power station’s capacity, preventing the device from starting. Examples include water pumps, air conditioner compressors, and refrigerator compressors.

AC output voltage standards vary by country. Please check the AC voltage of your device before use. Specific method:

• If purchased before December 2023, press the AC button quickly 10 times to switch the AC output voltage between 220V and 240V.
• If purchased after this date, there is no need to manually change the voltage, as the device automatically adjusts to an AC output voltage of 220-240V.
