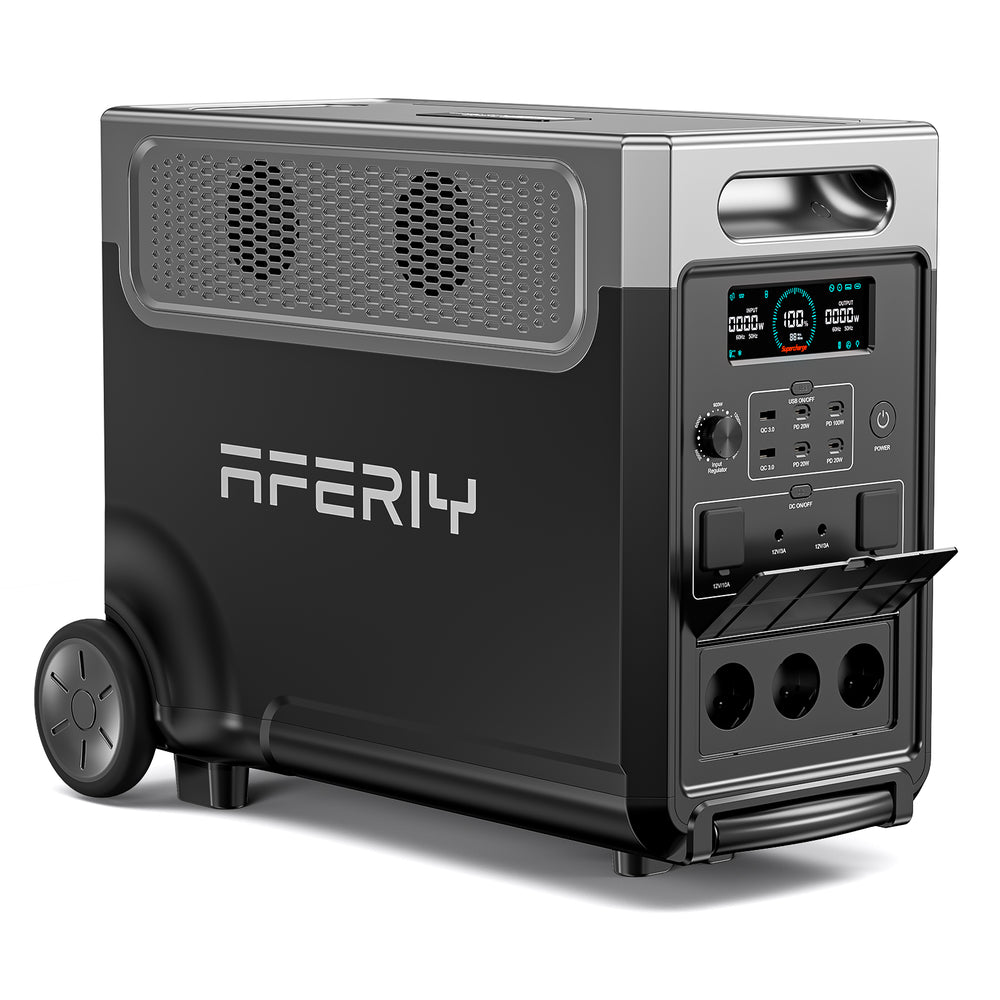

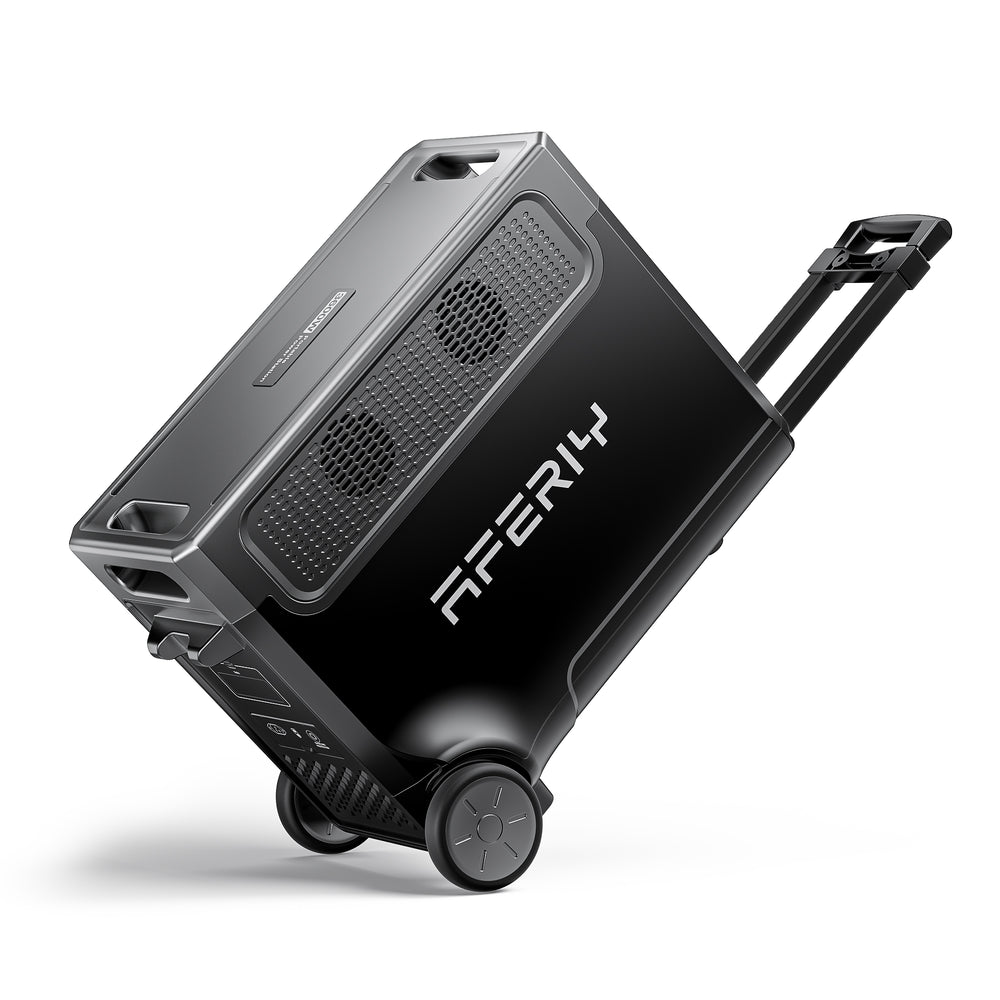

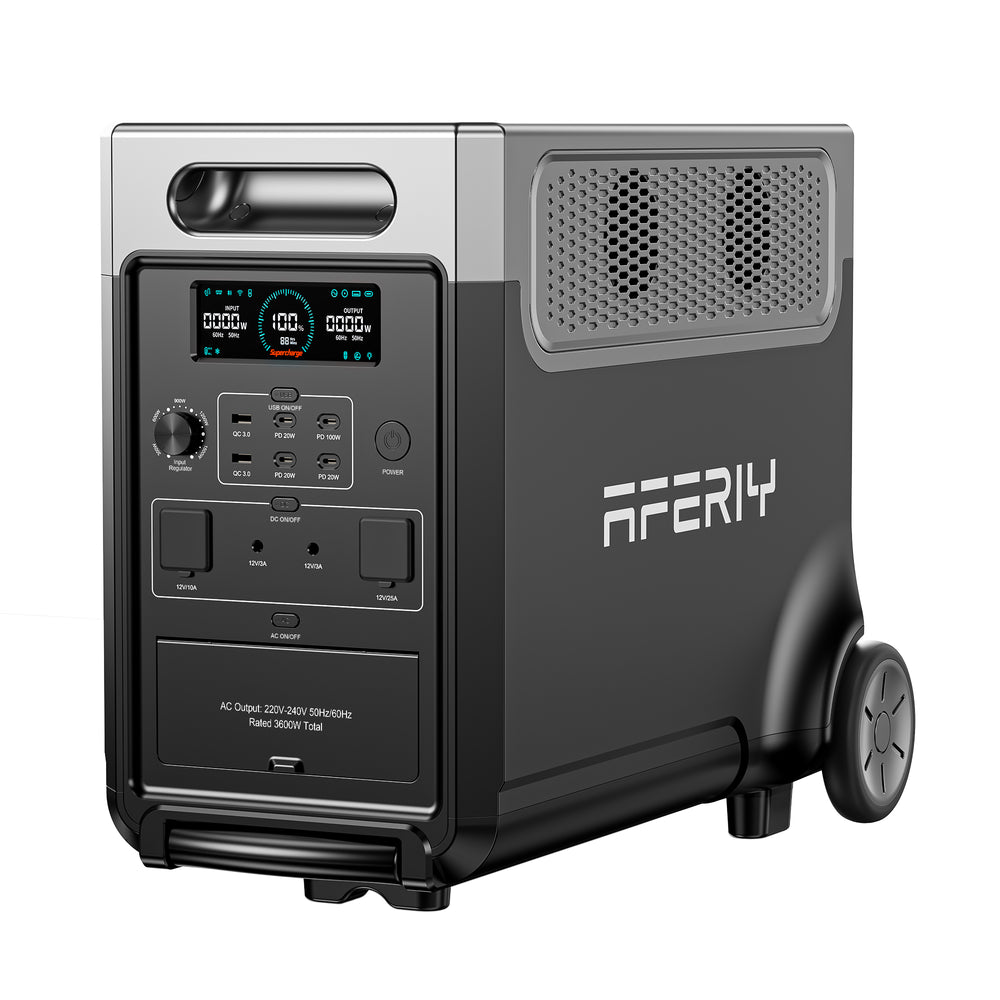

AFERIY Haven3600 P310 Portable Power Station | 3600W 3840Wh~11520Wh

Regarding the power station's capacity, the rated capacity of the P310 is 3840Wh. In practice, the output capacity is generally lower than the rated capacity for the following reasons:

• Battery life protection: The battery never fully discharges (even when the power station displays 0%, approximately 5% of the energy remains in the battery pack) to extend the station's lifespan;
• Internal power consumption: When the power station's AC switch is turned on, the device consumes approximately 20-25W per hour. Therefore, the longer the device is used, the higher the station's internal power consumption;
• Conversion losses: The power station's battery pack converts direct current to alternating current via an inverter, with a conversion efficiency of approximately 90%. In addition, there are energy losses throughout the various circuits.

These factors result in an actual output capacity that is lower than the nominal capacity.

The main differences between the AFERIY P310 and the AFERIY P310B are as follows:

• P310: A portable power station with a power output of 3600W and a capacity of 3840Wh. It operates autonomously and can directly power various devices. It supports multiple charging modes, including solar energy, AC charging, cigarette lighter charging, and generator charging.
• P310B: An expansion battery with a capacity of 3840Wh, which cannot be used alone. It must be connected to the P310 to increase the total capacity of the power station and extend its runtime.

In summary: The P310 is the main power station, capable of operating independently, while the P310B is an extension battery designed to increase the autonomy of the P310.

The app is called BrightEMS.

• For Android phones, you can download and install it from Google Play.
• For iOS phones, you can download and install it from the Apple Store.

Once the installation is complete, select your region, then create an account and log in. No email or phone verification code is required. After registering and logging in, go to the "Add Device" section. The app will automatically search for available devices nearby (please make sure Bluetooth is enabled). If you want to search for a specific model, click on the corresponding model in the "Add Device Manually" section. Once the device is detected, click on it to pair it. After pairing, you will be taken to the network settings, which only supports 2.4GHz WiFi networks.

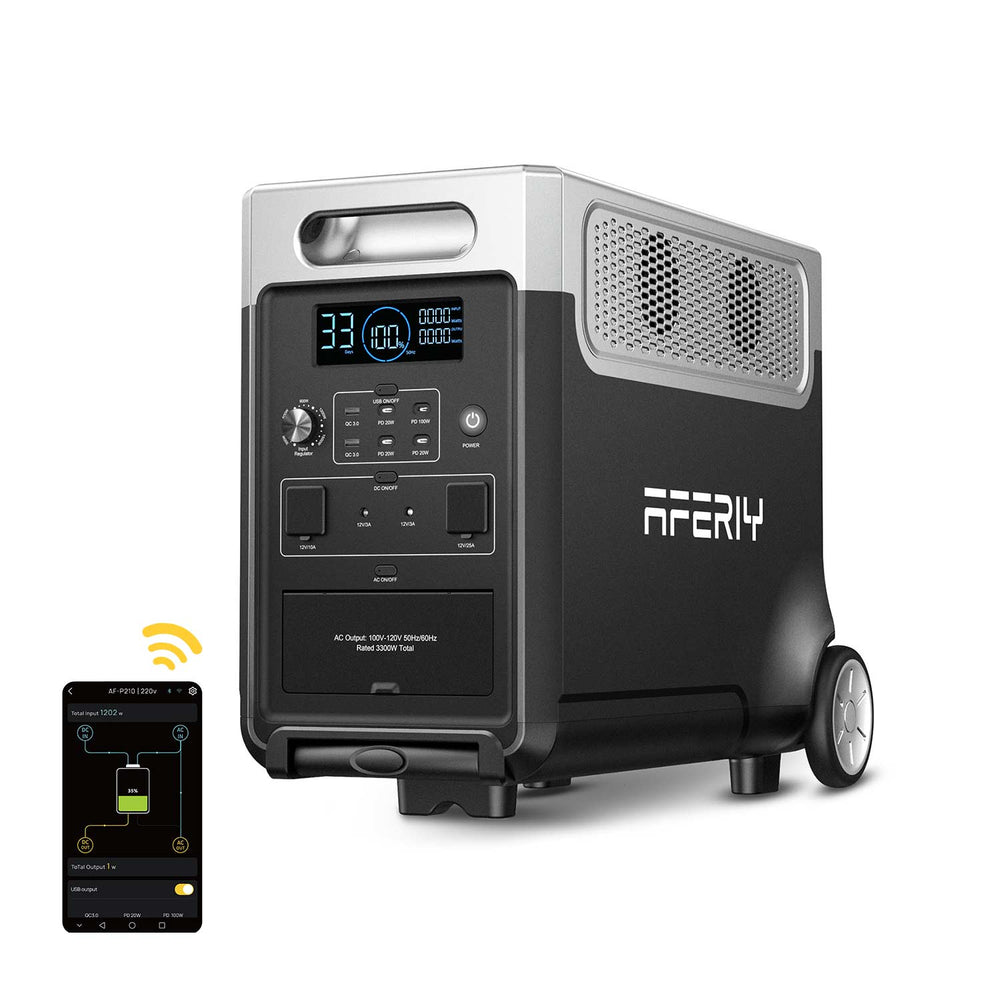

The APP allows you to monitor the operating status of the AFERIY P310 portable power bank in real time, make personalized settings, and access practical features for more efficient and intuitive device management. Key Features:

• Device pairing and unpairing
• View Wi-Fi and Bluetooth status, configure network
• Monitor input/output status and power
• Control USB, AC, and DC outputs, as well as LED lighting
• Set DC charging mode and maximum current
• Adjust AC charging and discharging parameters
• Enable/disable button sounds
• Set sleep and screen timeout
• Smart management with scheduled charging and power saving mode

With the APP, you can more easily manage your P310 and optimize your user experience with smarter and more convenient power.

Yes, please note that you must activate the corresponding output switch on the portable power station.

When the portable power station is connected between an AC wall outlet and household appliances, and the power switch and AC switch of the portable power station are in the ON state, the product enters UPS (Uninterruptible Power Supply) operating mode.

The cooling fan won't run continuously; only when the internal temperature of the power station rises above 60 degrees Celsius will the cooling fan automatically turn on and start running.

It's quiet during normal operation, and when the cooling fan is activated, the noise is less than 60 dB.

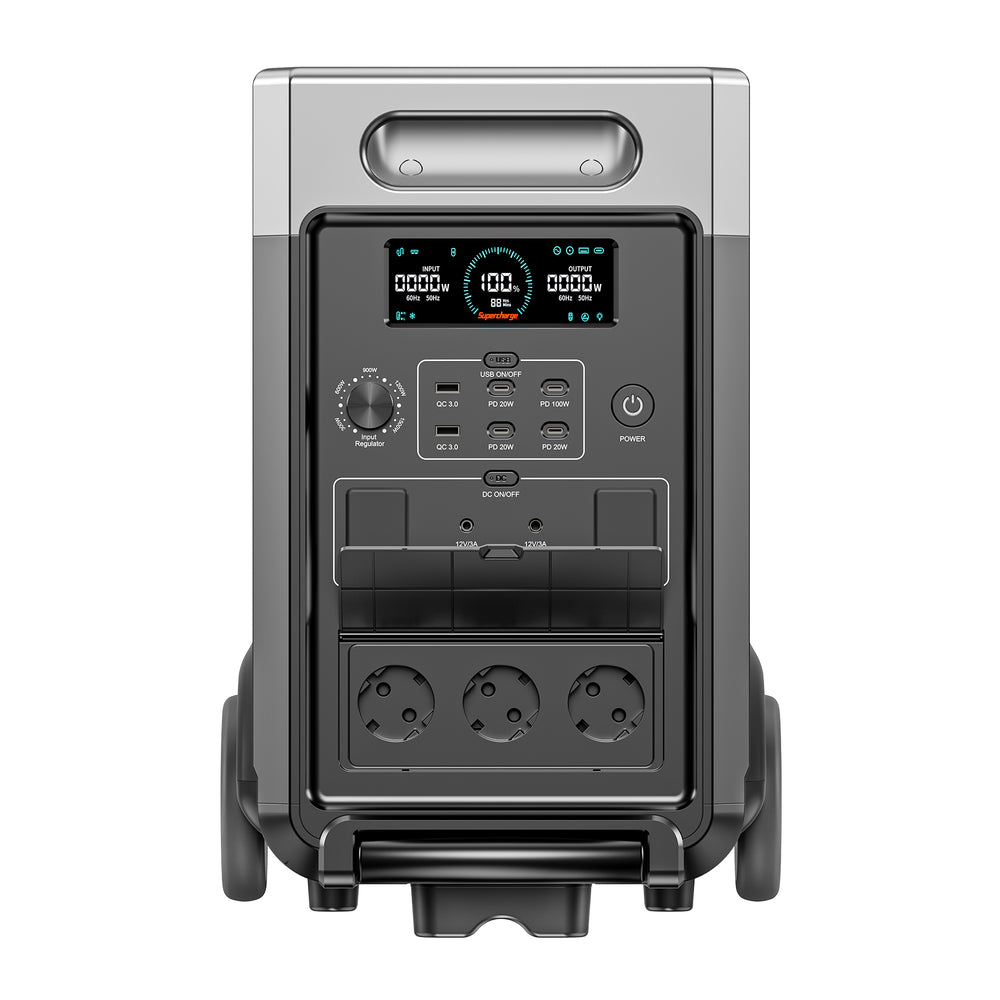

The AFERIY P310 3600W 3840Wh portable power generator is equipped with 13 output ports, allowing you to power 13 devices simultaneously, including:

• 3 AC output ports (220V-240V, 3600W)
• 2 USB-A output ports (QC3.0 18W)
• 3 USB-C output ports (20W)
• 1 USB-C output port (PD 100W)
• 2 DC output ports (12V, 3A)
• 1 cigarette lighter output port (12V, 10A)
• 1 XT60 output port

The AFERIY P310 3600W 3840Wh portable power generator is equipped with 13 output ports, allowing you to power 13 devices simultaneously, including:

• 3 AC output ports (220V-240V, 3600W)
• 2 USB-A output ports (QC3.0 18W)
• 3 USB-C output ports (20W)
• 1 USB-C output port (PD 100W)
• 2 DC output ports (12V, 3A)
• 1 cigarette lighter output port (12V, 10A)
• 1 XT60 output port

This depends on the power, voltage, and current combination of the solar panels you choose. You can connect the solar panels in series or in parallel. Please note that the AFERIY AF-P310 portable power station supports a maximum solar input of 2000W, 160V, 20A. As long as the solar panels meet these specifications, most will be compatible. If you use AFERIY solar panels, you can choose one of the following charging combinations:

• 1 AF-S400A1 panel (400W)
• 2 AF-S400A1 panels in series (400W*2)
• 3 AF-S400A1 panels in parallel (400W*3)
• 4 AF-S400A1 panels: 2 in series, 2 in parallel (400W*4)

By choosing the right combination of solar panels, you can optimize charging efficiency.

The AFERIY P310 3600W 3840Wh is a portable power station offering multiple charging options for maximum flexibility and efficiency. Taking into account charging efficiency and conversion losses, here is an overview of the different charging methods and their durations:

1. Mains charging (wall outlet)

• Maximum input power: 2200W
• Charging time: approximately 2 hours

2. Solar charging

• Maximum input power: 2000W
• Charging time: approximately 2.5 hours (in optimal sunlight conditions)

3. Generator charging (pure sine wave generator with an output power greater than 2200W)

• Input power: 2200W
• Charging time: approximately 2 hours (same as mains charging)

4. Hybrid charging (mains + solar, in optimal sunlight conditions)

• Maximum input power: 4200W (2200W AC + 2000W solar)
• Charging time: approximately 1.2 hours

5. Charging via cigarette lighter socket (car)

• Input power: 12V / 24V
• Charging time: varies depending on vehicle voltage, longer duration

Thanks to its multiple charging options, the AFERIY P310 adapts to all situations: home emergencies, camping, off-grid living, mobile working, and much more.

Yes, the AFERIY portable power station can be permanently connected to a solar panel. However, at sunrise or sunset, the solar panel may emit a ticking noise (due to the internal relay installed in the AFERIY portable power station, which serves as a protection circuit). This noise is normal and will not damage the power station or the solar panel. Also, please note that the portable power bank will experience slight power consumption when connected to the solar panel without any power input. Therefore, it is recommended to only connect the solar panel during the day and disconnect it when there is no charging effect at night.

Yes, only one ACC car charging cable (XT90 connector) is required. Please note that the car charging cable is capable of carrying a current exceeding 10A.

No. If the internal battery malfunctions, please contact AFERIY customer service.

No.

If the battery is to remain unused for a long period of time (more than 3 months), it should be kept at 60-80% of its nominal capacity (it is recommended to check and charge it every 3 months). Store it in a cool, dry place. Avoid contact with corrosive substances and keep away from fire and heat sources.

AC output voltage standards vary by country. Please check the AC voltage of your device before use. Specific method:

• If purchased before December 2023, press the AC button 10 times quickly to switch the AC output voltage between 220V and 240V.
• If purchased after this date, there is no need to manually switch the voltage, as the device automatically adjusts to an AC output voltage of 220-240V. The specific value is determined by the input voltage or the load's voltage demand.

If purchased before December 2023, press and hold the AC button for 3 seconds to switch between 50Hz and 60Hz. If purchased after this date, there's no need to manually change the frequency, as the device automatically adjusts to the input/output frequency.

If you purchased before December 2023, it is not possible to adjust the AC input power. If you purchased after this date, the AC input power may vary depending on the time of year. Note: The total load power must be less than 3600W. If you need to change the input power, follow these steps: press the AC button for 10 seconds to enter power switching mode. The screen will display the input power setting interface, where you can configure the AC input power. After remaining on the current input power setting interface for 5 seconds, the system will automatically save the setting and return to the main interface. The AC input power can be adjusted in five levels: 400W, 800W, 1200W, 1600W, and 2200W.
